Stop System PE - May Granger

Stop System PE™

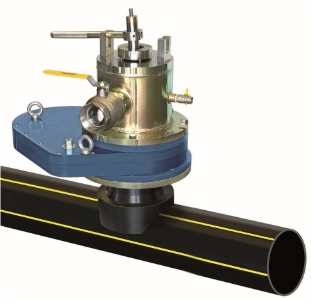

The STOP SYSTEM PE (TM) is the latest flow stopping equipment launched by RAVETTI for the Gas & Water distribution networks.

The full range is available for 5  or 10 bar pressure ratings for the following pipe sizes:

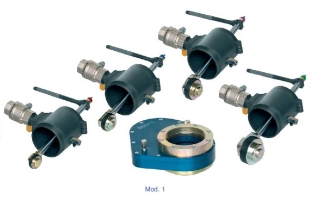

- Mod. 1 : DN 63 - 90 - 110 - 125 mm
- Mod. 2 : DN 160 - 180 - 200 - 225 mm
- Mod. 3 : DN 63 - 90 - 110 - 125 - 160 mm
- Mod. 4 : DN 180 - 200 - 225 mm
- Mod. 5 : DN 160 - 180 mm
- Mod. 6 : DN 200 - 225 - 250 - 280 - 315 mm

Each machine is equipped with a rubber expanding stopper suitable to both SDR 11 and 17.6 pipes and with a by-pass connection incorporated in the body.

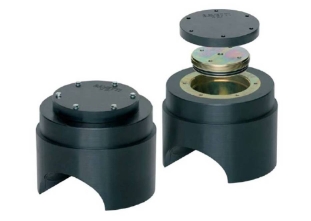

The RAVETTI electrofusion saddles for the STOP SYSTEM PE have the widest outlet ever designed and are fully compatible with any universal welding machine.

All saddles are provided with an internal plug and external blind flange with o.ring seals.

For further information please visit the website www.ravetti.com
